Buy K3V180 (with PTO port) hydraulic pump | Partsdic®

$1028.00

Select the number of specifications

Please check the product information you want!

Product Details

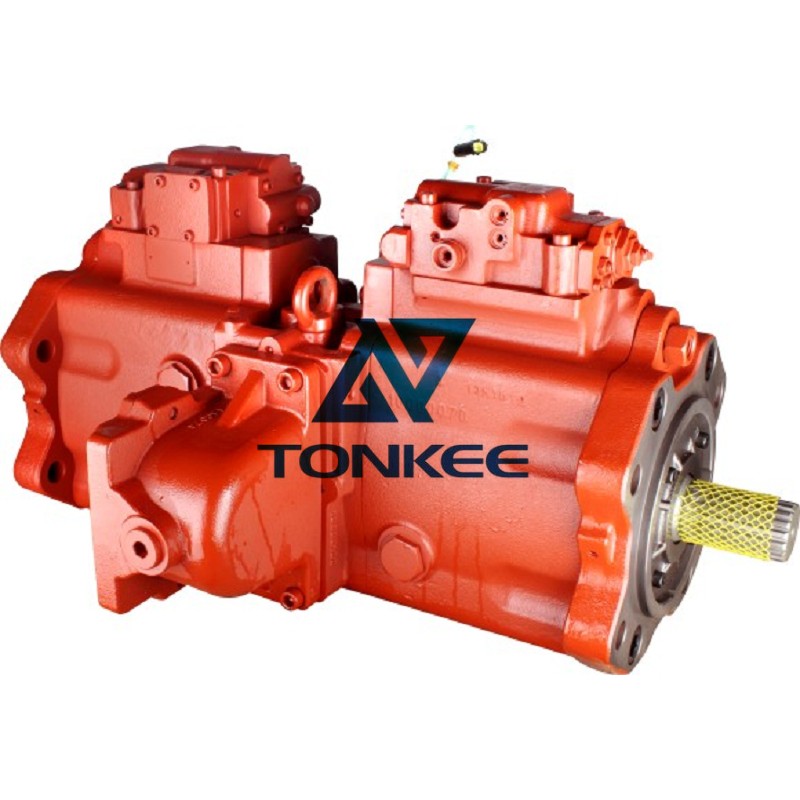

K3V180 (with PTO port), hydraulic pump | Partsdic®

The K3V180 hydraulic pump is manufactured by reputable companies and is built with durability and efficiency in mind.

It utilizes axial piston technology, which enables it to deliver high-pressure fluid flow with exceptional precision and control. The pump is designed to operate at a maximum pressure of 350 bar (5,075 psi), making it suitable for applications that require substantial hydraulic force. One of the distinguishing features of the K3V180 pump is its Power Take-Off (PTO) port. The PTO port allows the pump to transfer mechanical power to other devices or machinery through a driveshaft. This feature is particularly beneficial in applications where auxiliary equipment, such as winches or generators, need to be powered by the hydraulic system. The PTO port adds versatility and expands the range of potential applications for the pump. The K3V180 pump has a displacement of 180 cc/rev, which refers to the volume of fluid it can deliver per revolution. This displacement value determines the flow rate of the pump and influences the overall system performance. The pump is capable of delivering a maximum flow rate of up to 430 liters per minute (113.6 gallons per minute), making it suitable for applications that require high-speed and high-volume hydraulic fluid transfer.

To ensure efficient operation and longevity, the K3V180 pump incorporates advanced features.

It utilizes a swash plate mechanism, which allows for variable displacement control. This means that the pump can adjust its output flow according to the system's requirements, optimizing energy consumption and reducing unnecessary wear and tear. The pump also includes robust bearings and seals, which contribute to its durability and enable it to withstand high-pressure operation over extended periods. In terms of installation and connectivity, the K3V180 pump is designed to be easily integrated into hydraulic systems. It has standard SAE mounting flanges, which facilitate straightforward installation and compatibility with other hydraulic components. The pump also features multiple port options, allowing for flexible hose routing and easy connection to the hydraulic system's various components. Additionally, the K3V180 pump can be paired with compatible control valves and electronic systems to achieve precise control and automation. This integration enables efficient operation and enhances the overall performance of the hydraulic system.

No comment

Previous : OEM K3V180 (Volvo) hydraulic pump | Partsdic® Next : Hot sale made in China K3VL80 hydraulic pump | Partsdic®
Product Details
K3V180 (with PTO port), hydraulic pump | Partsdic®

The K3V180 hydraulic pump is manufactured by reputable companies and is built with durability and efficiency in mind.

It utilizes axial piston technology, which enables it to deliver high-pressure fluid flow with exceptional precision and control. The pump is designed to operate at a maximum pressure of 350 bar (5,075 psi), making it suitable for applications that require substantial hydraulic force. One of the distinguishing features of the K3V180 pump is its Power Take-Off (PTO) port. The PTO port allows the pump to transfer mechanical power to other devices or machinery through a driveshaft. This feature is particularly beneficial in applications where auxiliary equipment, such as winches or generators, need to be powered by the hydraulic system. The PTO port adds versatility and expands the range of potential applications for the pump. The K3V180 pump has a displacement of 180 cc/rev, which refers to the volume of fluid it can deliver per revolution. This displacement value determines the flow rate of the pump and influences the overall system performance. The pump is capable of delivering a maximum flow rate of up to 430 liters per minute (113.6 gallons per minute), making it suitable for applications that require high-speed and high-volume hydraulic fluid transfer.

To ensure efficient operation and longevity, the K3V180 pump incorporates advanced features.

It utilizes a swash plate mechanism, which allows for variable displacement control. This means that the pump can adjust its output flow according to the system's requirements, optimizing energy consumption and reducing unnecessary wear and tear. The pump also includes robust bearings and seals, which contribute to its durability and enable it to withstand high-pressure operation over extended periods. In terms of installation and connectivity, the K3V180 pump is designed to be easily integrated into hydraulic systems. It has standard SAE mounting flanges, which facilitate straightforward installation and compatibility with other hydraulic components. The pump also features multiple port options, allowing for flexible hose routing and easy connection to the hydraulic system's various components. Additionally, the K3V180 pump can be paired with compatible control valves and electronic systems to achieve precise control and automation. This integration enables efficient operation and enhances the overall performance of the hydraulic system.
